Introduction to Random Forests

Through this workshop you will learn how to quickly model and understand datasets using scikit-learn. Topics will include a basic introduction to using decisions trees and random forests, understanding feature importance, identifying model weaknesses, explaining your model, and more.

If you are not familiar with pandas, check out this post first. This article contains some high level explanations of the code not covered in the live workshop, but skips some examples given in the main presentation. Here is a recording of the main workshop, here are the slides, and here is a colab link to run all the code.

Many of the model interpretation techniques were taken from the fast.ai ML course. Check it out!!

Indented plain-text blocks in this article contain outputs from the previous code block.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

%matplotlib inline

Data Wrangling

Data munging/wrangling is the process of transforming your raw data into a form suitable for analysis or modelling. Typically this involves dealing with null values, finding (and possibly correcting) data issues, transforming non-numerical data into numerical data, and more.

In the “real world”, you will need to do much more than is shown below. There are numerous Kaggle Kernels demonstrating in depth data cleaning. For the purposes of this workshop, we will do (less than) the bare minimum for two reasons:

  1. We are using a relatively clean dataset (with few data oddities).
  2. Our model analysis will tell us where to focus our data cleaning and feature engineering efforts.
  3. This workshop is only an hour long :P.

Here is an example of a great example of some data exploration and correction.

def show_all(df):
    """Shows our dataframe without cutting off any rows or columns."""
    with pd.option_context("display.max_rows", 1000,
                           "display.max_columns", 1000):
        display(df)

First, we take a look at our data to get a sense of the types of values in the columns. We do this by looking at some of our data and using numerical summaries.

df = pd.read_csv('https://raw.githubusercontent.com/n2cholas/dsc-workshops/master/Random%20Forest%20Workshop/data/train.csv')
show_all(df.head())
Id MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities LotConfig LandSlope Neighborhood Condition1 Condition2 BldgType HouseStyle OverallQual OverallCond YearBuilt YearRemodAdd RoofStyle RoofMatl Exterior1st Exterior2nd MasVnrType MasVnrArea ExterQual ExterCond Foundation BsmtQual BsmtCond BsmtExposure BsmtFinType1 BsmtFinSF1 BsmtFinType2 BsmtFinSF2 BsmtUnfSF TotalBsmtSF Heating HeatingQC CentralAir Electrical 1stFlrSF 2ndFlrSF LowQualFinSF GrLivArea BsmtFullBath BsmtHalfBath FullBath HalfBath BedroomAbvGr KitchenAbvGr KitchenQual TotRmsAbvGrd Functional Fireplaces FireplaceQu GarageType GarageYrBlt GarageFinish GarageCars GarageArea GarageQual GarageCond PavedDrive WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition SalePrice
0 1 60 RL 65.0 8450 Pave NaN Reg Lvl AllPub Inside Gtl CollgCr Norm Norm 1Fam 2Story 7 5 2003 2003 Gable CompShg VinylSd VinylSd BrkFace 196.0 Gd TA PConc Gd TA No GLQ 706 Unf 0 150 856 GasA Ex Y SBrkr 856 854 0 1710 1 0 2 1 3 1 Gd 8 Typ 0 NaN Attchd 2003.0 RFn 2 548 TA TA Y 0 61 0 0 0 0 NaN NaN NaN 0 2 2008 WD Normal 208500
1 2 20 RL 80.0 9600 Pave NaN Reg Lvl AllPub FR2 Gtl Veenker Feedr Norm 1Fam 1Story 6 8 1976 1976 Gable CompShg MetalSd MetalSd None 0.0 TA TA CBlock Gd TA Gd ALQ 978 Unf 0 284 1262 GasA Ex Y SBrkr 1262 0 0 1262 0 1 2 0 3 1 TA 6 Typ 1 TA Attchd 1976.0 RFn 2 460 TA TA Y 298 0 0 0 0 0 NaN NaN NaN 0 5 2007 WD Normal 181500
2 3 60 RL 68.0 11250 Pave NaN IR1 Lvl AllPub Inside Gtl CollgCr Norm Norm 1Fam 2Story 7 5 2001 2002 Gable CompShg VinylSd VinylSd BrkFace 162.0 Gd TA PConc Gd TA Mn GLQ 486 Unf 0 434 920 GasA Ex Y SBrkr 920 866 0 1786 1 0 2 1 3 1 Gd 6 Typ 1 TA Attchd 2001.0 RFn 2 608 TA TA Y 0 42 0 0 0 0 NaN NaN NaN 0 9 2008 WD Normal 223500
3 4 70 RL 60.0 9550 Pave NaN IR1 Lvl AllPub Corner Gtl Crawfor Norm Norm 1Fam 2Story 7 5 1915 1970 Gable CompShg Wd Sdng Wd Shng None 0.0 TA TA BrkTil TA Gd No ALQ 216 Unf 0 540 756 GasA Gd Y SBrkr 961 756 0 1717 1 0 1 0 3 1 Gd 7 Typ 1 Gd Detchd 1998.0 Unf 3 642 TA TA Y 0 35 272 0 0 0 NaN NaN NaN 0 2 2006 WD Abnorml 140000
4 5 60 RL 84.0 14260 Pave NaN IR1 Lvl AllPub FR2 Gtl NoRidge Norm Norm 1Fam 2Story 8 5 2000 2000 Gable CompShg VinylSd VinylSd BrkFace 350.0 Gd TA PConc Gd TA Av GLQ 655 Unf 0 490 1145 GasA Ex Y SBrkr 1145 1053 0 2198 1 0 2 1 4 1 Gd 9 Typ 1 TA Attchd 2000.0 RFn 3 836 TA TA Y 192 84 0 0 0 0 NaN NaN NaN 0 12 2008 WD Normal 250000
len(df)
1460
show_all(df.describe())
Id MSSubClass LotFrontage LotArea OverallQual OverallCond YearBuilt YearRemodAdd MasVnrArea BsmtFinSF1 BsmtFinSF2 BsmtUnfSF TotalBsmtSF 1stFlrSF 2ndFlrSF LowQualFinSF GrLivArea BsmtFullBath BsmtHalfBath FullBath HalfBath BedroomAbvGr KitchenAbvGr TotRmsAbvGrd Fireplaces GarageYrBlt GarageCars GarageArea WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea MiscVal MoSold YrSold SalePrice
count 1460.000000 1460.000000 1201.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1452.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1379.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000 1460.000000
mean 730.500000 56.897260 70.049958 10516.828082 6.099315 5.575342 1971.267808 1984.865753 103.685262 443.639726 46.549315 567.240411 1057.429452 1162.626712 346.992466 5.844521 1515.463699 0.425342 0.057534 1.565068 0.382877 2.866438 1.046575 6.517808 0.613014 1978.506164 1.767123 472.980137 94.244521 46.660274 21.954110 3.409589 15.060959 2.758904 43.489041 6.321918 2007.815753 180921.195890
std 421.610009 42.300571 24.284752 9981.264932 1.382997 1.112799 30.202904 20.645407 181.066207 456.098091 161.319273 441.866955 438.705324 386.587738 436.528436 48.623081 525.480383 0.518911 0.238753 0.550916 0.502885 0.815778 0.220338 1.625393 0.644666 24.689725 0.747315 213.804841 125.338794 66.256028 61.119149 29.317331 55.757415 40.177307 496.123024 2.703626 1.328095 79442.502883
min 1.000000 20.000000 21.000000 1300.000000 1.000000 1.000000 1872.000000 1950.000000 0.000000 0.000000 0.000000 0.000000 0.000000 334.000000 0.000000 0.000000 334.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 2.000000 0.000000 1900.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 1.000000 2006.000000 34900.000000
25% 365.750000 20.000000 59.000000 7553.500000 5.000000 5.000000 1954.000000 1967.000000 0.000000 0.000000 0.000000 223.000000 795.750000 882.000000 0.000000 0.000000 1129.500000 0.000000 0.000000 1.000000 0.000000 2.000000 1.000000 5.000000 0.000000 1961.000000 1.000000 334.500000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 5.000000 2007.000000 129975.000000
50% 730.500000 50.000000 69.000000 9478.500000 6.000000 5.000000 1973.000000 1994.000000 0.000000 383.500000 0.000000 477.500000 991.500000 1087.000000 0.000000 0.000000 1464.000000 0.000000 0.000000 2.000000 0.000000 3.000000 1.000000 6.000000 1.000000 1980.000000 2.000000 480.000000 0.000000 25.000000 0.000000 0.000000 0.000000 0.000000 0.000000 6.000000 2008.000000 163000.000000
75% 1095.250000 70.000000 80.000000 11601.500000 7.000000 6.000000 2000.000000 2004.000000 166.000000 712.250000 0.000000 808.000000 1298.250000 1391.250000 728.000000 0.000000 1776.750000 1.000000 0.000000 2.000000 1.000000 3.000000 1.000000 7.000000 1.000000 2002.000000 2.000000 576.000000 168.000000 68.000000 0.000000 0.000000 0.000000 0.000000 0.000000 8.000000 2009.000000 214000.000000
max 1460.000000 190.000000 313.000000 215245.000000 10.000000 9.000000 2010.000000 2010.000000 1600.000000 5644.000000 1474.000000 2336.000000 6110.000000 4692.000000 2065.000000 572.000000 5642.000000 3.000000 2.000000 3.000000 2.000000 8.000000 3.000000 14.000000 3.000000 2010.000000 4.000000 1418.000000 857.000000 547.000000 552.000000 508.000000 480.000000 738.000000 15500.000000 12.000000 2010.000000 755000.000000

We want to ensure all our columns (or features) have numerical or categorical values. Let’s look at the data types of each column.

show_all(df.dtypes)
Id                 int64
MSSubClass         int64
MSZoning          object
LotFrontage      float64
LotArea            int64
Street            object
Alley             object
LotShape          object
LandContour       object
Utilities         object
LotConfig         object
LandSlope         object
Neighborhood      object
Condition1        object
Condition2        object
BldgType          object
HouseStyle        object
OverallQual        int64
OverallCond        int64
YearBuilt          int64
YearRemodAdd       int64
RoofStyle         object
RoofMatl          object
Exterior1st       object
Exterior2nd       object
MasVnrType        object
MasVnrArea       float64
ExterQual         object
ExterCond         object
Foundation        object
BsmtQual          object
BsmtCond          object
BsmtExposure      object
BsmtFinType1      object
BsmtFinSF1         int64
BsmtFinType2      object
BsmtFinSF2         int64
BsmtUnfSF          int64
TotalBsmtSF        int64
Heating           object
HeatingQC         object
CentralAir        object
Electrical        object
1stFlrSF           int64
2ndFlrSF           int64
LowQualFinSF       int64
GrLivArea          int64
BsmtFullBath       int64
BsmtHalfBath       int64
FullBath           int64
HalfBath           int64
BedroomAbvGr       int64
KitchenAbvGr       int64
KitchenQual       object
TotRmsAbvGrd       int64
Functional        object
Fireplaces         int64
FireplaceQu       object
GarageType        object
GarageYrBlt      float64
GarageFinish      object
GarageCars         int64
GarageArea         int64
GarageQual        object
GarageCond        object
PavedDrive        object
WoodDeckSF         int64
OpenPorchSF        int64
EnclosedPorch      int64
3SsnPorch          int64
ScreenPorch        int64
PoolArea           int64
PoolQC            object
Fence             object
MiscFeature       object
MiscVal            int64
MoSold             int64
YrSold             int64
SaleType          object
SaleCondition     object
SalePrice          int64
dtype: object

Most of the data is of type object. In general, this will be a Python string but could also be other Python objects, such as lists or dicts. Just based on the names, it looks like these are all categorical features. Let’s check this by looking at the unique values in each column.

for c in df.columns[df.dtypes=='object']:
    print(df[c].value_counts())
    print()
RL         1151
RM          218
FV           65
RH           16
C (all)      10
Name: MSZoning, dtype: int64

Pave    1454
Grvl       6
Name: Street, dtype: int64

Grvl    50
Pave    41
Name: Alley, dtype: int64

Reg    925
IR1    484
IR2     41
IR3     10
Name: LotShape, dtype: int64

Lvl    1311
Bnk      63
HLS      50
Low      36
Name: LandContour, dtype: int64

AllPub    1459
NoSeWa       1
Name: Utilities, dtype: int64

Inside     1052
Corner      263
CulDSac      94
FR2          47
FR3           4
Name: LotConfig, dtype: int64

Gtl    1382
Mod      65
Sev      13
Name: LandSlope, dtype: int64

NAmes      225
CollgCr    150
OldTown    113
Edwards    100
Somerst     86
Gilbert     79
NridgHt     77
Sawyer      74
NWAmes      73
SawyerW     59
BrkSide     58
Crawfor     51
Mitchel     49
NoRidge     41
Timber      38
IDOTRR      37
ClearCr     28
StoneBr     25
SWISU       25
MeadowV     17
Blmngtn     17
BrDale      16
Veenker     11
NPkVill      9
Blueste      2
Name: Neighborhood, dtype: int64

Norm      1260
Feedr       81
Artery      48
RRAn        26
PosN        19
RRAe        11
PosA         8
RRNn         5
RRNe         2
Name: Condition1, dtype: int64

Norm      1445
Feedr        6
RRNn         2
PosN         2
Artery       2
RRAe         1
PosA         1
RRAn         1
Name: Condition2, dtype: int64

1Fam      1220
TwnhsE     114
Duplex      52
Twnhs       43
2fmCon      31
Name: BldgType, dtype: int64

1Story    726
2Story    445
1.5Fin    154
SLvl       65
SFoyer     37
1.5Unf     14
2.5Unf     11
2.5Fin      8
Name: HouseStyle, dtype: int64

Gable      1141
Hip         286
Flat         13
Gambrel      11
Mansard       7
Shed          2
Name: RoofStyle, dtype: int64

CompShg    1434
Tar&Grv      11
WdShngl       6
WdShake       5
Membran       1
Roll          1
ClyTile       1
Metal         1
Name: RoofMatl, dtype: int64

VinylSd    515
HdBoard    222
MetalSd    220
Wd Sdng    206
Plywood    108
CemntBd     61
BrkFace     50
WdShing     26
Stucco      25
AsbShng     20
Stone        2
BrkComm      2
AsphShn      1
ImStucc      1
CBlock       1
Name: Exterior1st, dtype: int64

VinylSd    504
MetalSd    214
HdBoard    207
Wd Sdng    197
Plywood    142
CmentBd     60
Wd Shng     38
Stucco      26
BrkFace     25
AsbShng     20
ImStucc     10
Brk Cmn      7
Stone        5
AsphShn      3
CBlock       1
Other        1
Name: Exterior2nd, dtype: int64

None       864
BrkFace    445
Stone      128
BrkCmn      15
Name: MasVnrType, dtype: int64

TA    906
Gd    488
Ex     52
Fa     14
Name: ExterQual, dtype: int64

TA    1282
Gd     146
Fa      28
Ex       3
Po       1
Name: ExterCond, dtype: int64

PConc     647
CBlock    634
BrkTil    146
Slab       24
Stone       6
Wood        3
Name: Foundation, dtype: int64

TA    649
Gd    618
Ex    121
Fa     35
Name: BsmtQual, dtype: int64

TA    1311
Gd      65
Fa      45
Po       2
Name: BsmtCond, dtype: int64

No    953
Av    221
Gd    134
Mn    114
Name: BsmtExposure, dtype: int64

Unf    430
GLQ    418
ALQ    220
BLQ    148
Rec    133
LwQ     74
Name: BsmtFinType1, dtype: int64

Unf    1256
Rec      54
LwQ      46
BLQ      33
ALQ      19
GLQ      14
Name: BsmtFinType2, dtype: int64

GasA     1428
GasW       18
Grav        7
Wall        4
OthW        2
Floor       1
Name: Heating, dtype: int64

Ex    741
TA    428
Gd    241
Fa     49
Po      1
Name: HeatingQC, dtype: int64

Y    1365
N      95
Name: CentralAir, dtype: int64

SBrkr    1334
FuseA      94
FuseF      27
FuseP       3
Mix         1
Name: Electrical, dtype: int64

TA    735
Gd    586
Ex    100
Fa     39
Name: KitchenQual, dtype: int64

Typ     1360
Min2      34
Min1      31
Mod       15
Maj1      14
Maj2       5
Sev        1
Name: Functional, dtype: int64

Gd    380
TA    313
Fa     33
Ex     24
Po     20
Name: FireplaceQu, dtype: int64

Attchd     870
Detchd     387
BuiltIn     88
Basment     19
CarPort      9
2Types       6
Name: GarageType, dtype: int64

Unf    605
RFn    422
Fin    352
Name: GarageFinish, dtype: int64

TA    1311
Fa      48
Gd      14
Ex       3
Po       3
Name: GarageQual, dtype: int64

TA    1326
Fa      35
Gd       9
Po       7
Ex       2
Name: GarageCond, dtype: int64

Y    1340
N      90
P      30
Name: PavedDrive, dtype: int64

Gd    3
Fa    2
Ex    2
Name: PoolQC, dtype: int64

MnPrv    157
GdPrv     59
GdWo      54
MnWw      11
Name: Fence, dtype: int64

Shed    49
Gar2     2
Othr     2
TenC     1
Name: MiscFeature, dtype: int64

WD       1267
New       122
COD        43
ConLD       9
ConLI       5
ConLw       5
CWD         4
Oth         3
Con         2
Name: SaleType, dtype: int64

Normal     1198
Partial     125
Abnorml     101
Family       20
Alloca       12
AdjLand       4
Name: SaleCondition, dtype: int64

Great, now we know all of our object columns contain categories. In reality, this is rarely the case and you would have to do additional cleaning steps.

We should also note that some of these categories are ordered, such as ExterQual and ExterCond.

Also, you may have a dataset with thousands of features, so it is infeasible to look through all the categories like we did. In this case you can look at the number of unique values for each feature. Features with many unique values might be numerical values that weren’t properly encoded or free form text, which would have to be dealt with otherwise.

Next thing we want to do is deal with null values. Let’s see which columns have null values by showing the proportion of values in each column that are null.

x = (df.isnull().sum()/len(df)).to_frame(name='perc_null')
x['types'] = df.dtypes
x[x.perc_null>0].sort_values('perc_null', ascending=False)
perc_null types
PoolQC 0.995205 object
MiscFeature 0.963014 object
Alley 0.937671 object
Fence 0.807534 object
FireplaceQu 0.472603 object
LotFrontage 0.177397 float64
GarageType 0.055479 object
GarageYrBlt 0.055479 float64
GarageFinish 0.055479 object
GarageQual 0.055479 object
GarageCond 0.055479 object
BsmtExposure 0.026027 object
BsmtFinType2 0.026027 object
BsmtFinType1 0.025342 object
BsmtCond 0.025342 object
BsmtQual 0.025342 object
MasVnrArea 0.005479 float64
MasVnrType 0.005479 object
Electrical 0.000685 object

For the categorical variables, we will simply add a null category, when we turn them into categorical variables, pandas will automatically create a nan category if needed.

Dealing with nans (not a numbers) in numerical columns is more challenging. You typically want to replace the nans with a default value. Is there a reasonable default for this column? Does 0 make sense? What about the min/max/median? There is much discussion about this on the web.

Here, PoolQC and MasVnrArea are null when the house does not have a pool, so it makes sense to fill in 0 for these columns. For LotFrontage and GarageYrBuilt, we use the median. For the latter two, the missing information may have some pattern that helps us predict the price, so we will create an indicator column that tells us whether the column was null or not. This could be useful if, for example, all houses without a LotFrontage had a very small Lot, so they have a lower cost, so the indicator would help our model learn that this is the case.

df.PoolQC.fillna(0, inplace=True)
df.MasVnrArea.fillna(0, inplace=True)

def fill_nulls(col, filler=np.nanmedian):
    df[f'{col}_null'] = 0
    df.loc[df[col].isnull(), f'{col}_null'] = 1
    df[col].fillna(filler(df[col]), inplace=True)

fill_nulls('LotFrontage')
fill_nulls('GarageYrBlt')

Now, the “object” dtype columns are ready to be turned into actual categories. You can read more about the “category” dtype on the pandas documentation page. Essentially, it changes all the values from strings to numbers, so our model can use them.

For a vast majority of machine learning model types, we would need to do one additional step and “one-hot encode” these categorical variables. Since we are using a tree-based model, we will not need to do this, so we will not cover it.

for col in df.columns[df.dtypes=='object']:
    df[col] = df[col].astype('category')

We noted above that some of the categorical features were ordered. We will encode two of them as ordered categorical columns, but leave the rest as an exercise.

from pandas.api.types import CategoricalDtype

order = ['Po', 'Fa', 'TA', 'Gd', 'Ex']
cat_type = CategoricalDtype(categories=order, ordered=True)
df['ExterQual'] = df['ExterQual'].astype(cat_type)
df['ExterCond'] = df['ExterCond'].astype(cat_type)

We can take a look at some of the category codes along with the original strings:

print(df['ExterQual'][:10].cat.codes)
print(df['ExterQual'][:10])
0    3
1    2
2    3
3    2
4    3
5    2
6    3
7    2
8    2
9    2
dtype: int8
0    Gd
1    TA
2    Gd
3    TA
4    Gd
5    TA
6    Gd
7    TA
8    TA
9    TA
Name: ExterQual, dtype: category
Categories (5, object): [Po < Fa < TA < Gd < Ex]

So far, we’ve done some basic data transformations so the data can be fed into our model. We did no feature engineering or data exploration. Your dataset could have thousands of dimensions, so it is infeasible to extensively explore the data before modelling. Our approach will be to let the model tell us what’s important and what’s not so we can focus our effots appropriately.

Modeling

from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.model_selection import train_test_split

Our goal is to predict the price of the houses given the rest of the information. We start by splitting our dataframe into our features (our model inputs) and our target (the price we are trying to predict).

df_y, df_x = df['SalePrice'], df.drop('SalePrice', axis=1)
# same as axis='columns'

Scikit-learn expects numerical values for all the columns, but our categorical variables contain text. We will replace the text with their numeric category number:

for col in df_x.columns[df_x.dtypes=='category']:
    df_x[col] = df_x[col].cat.codes

In machine learning, you typically split your data into a training, validation, and test set. You train your model on the training set, then evaluate the performance on the validation set. You use this validation set to tune hyperparameters (explained later). After selecting your model, you use the test set as one final check to make sure your model generalizes well (and you didn’t just “overfit” to your validation set).

These concepts will be explained in more detail below. We split our data into just training and validation for simplicity, as we won’t be doing any rigorous model selection.

X_train, X_valid, y_train, y_valid = train_test_split(
    df_x, df_y, test_size=0.2, random_state=42)

Let’s create some convenience functions to evaluate our model. Metric selection will not be discussed during this workshop. Here, we use the root mean squared error as our metric. Mean squared error is a common metric used for regression problems, and root mean squared error is nice in that it is in the same units as your original output.

def rmse(x,y):
    return np.sqrt(np.mean(((x-y)**2)))

def print_score(model, X_t=X_train, y_t=y_train,
                       X_v=X_valid, y_v=y_valid):
    scores = [rmse(model.predict(X_t), y_t),
              rmse(model.predict(X_v), y_v),
              model.score(X_t, y_t),
              model.score(X_v, y_v)]

    labels = ['Train RMSE', 'Valid RMSE', 'Train R^2', 'Valid R^2']
    for t, s in zip(labels, scores):
        print(f'{t}: {s}')

Time to fit our first model: a DecisionTree! It’s as easy as:

tree = DecisionTreeRegressor(min_samples_leaf=50)
tree.fit(X_train, y_train)

We used the min_samples_leaf argument to limit the size of the tree so we can visualize it below:

from sklearn.externals.six import StringIO
from IPython.display import Image
from sklearn.tree import export_graphviz
import pydotplus

dot_data = StringIO()
g = export_graphviz(tree, out_file=dot_data,
                filled=True, rounded=True,
                special_characters=True,
                feature_names=X_train.columns)
graph = pydotplus.graph_from_dot_data(dot_data.getvalue())
Image(graph.create_png())

png

Given the features, the decision tree works as follows: we start at the root and look at the feature in question. If the condition at the top is True, we follow the True branch, otherwise we follow the False branch. This process continues until we reach a leaf. The value at the leaf is our prediction.

The tree is trained as follows. We take the data, and we look at all the features and values of these features to find the best split. The best split is the one such that our evaluation metric (mean squared error) is minimized by the split. In other words, if this split is used, the mean squared error of the model that comes from this split is minimized. The samples represents the number of samples of data that are in the subtree (due to the splits). The value is the mean target value of all the samples in that subtree. Then we repeat until each leaf only contains one sample (usually).

Let’s build a full decision tree and evaluate its performance:

model = DecisionTreeRegressor()
model.fit(X_train, y_train)
print_score(model)
Train RMSE: 0.0
Valid RMSE: 43111.0938316298
Train R^2: 1.0
Valid R^2: 0.7576939544477124

We see the Decision Tree has overfit. So, we introduce Random Forests:

model = RandomForestRegressor(n_estimators=30,
                              n_jobs=-1)
model.fit(X_train, y_train)
print_score(model)
Train RMSE: 11972.136923038881
Valid RMSE: 29315.10749027229
Train R^2: 0.9759693433070632
Valid R^2: 0.8879610196550729

There are a few key hyperparameters to tune (shown below):

model = RandomForestRegressor(n_estimators=50,
                              n_jobs=-1,
                              min_samples_leaf=1,
                              max_features=0.8) #'sqrt', 'log2'
model.fit(X_train, y_train)
print_score(model)
Train RMSE: 11464.59450285856
Valid RMSE: 29159.246751559134
Train R^2: 0.9779636487670959
Valid R^2: 0.889149216323862

Feature Importances

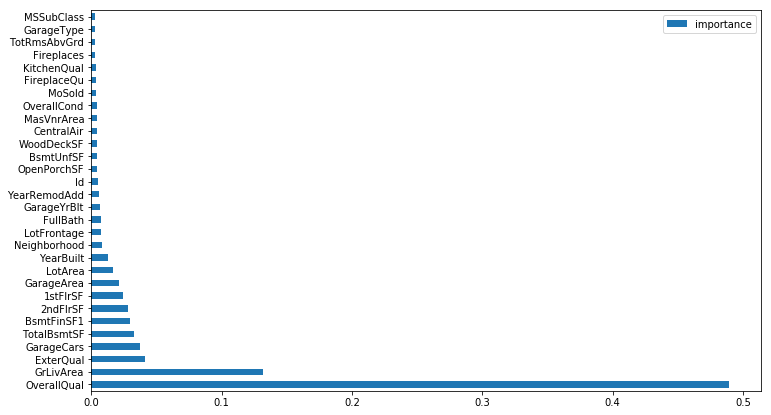

Now that we have a model with reasonable performance, we can use it to understand our dataset (and use that to improve the model). The first is looking at feature importance.

To calculate feature x’s importance, we first shuffle x column. Now, the feature is uncorrelated with the target. Next, we evaluate the model’s performance on the training set and see how much it has decreased compared to when the feature was unshuffled. The higher this value, the more important the feature is.

# properties with an underscore are available after you fit the model
fi = pd.DataFrame(model.feature_importances_,
                  index = X_train.columns,
                  columns=['importance'])
fi = fi.sort_values('importance', ascending=False)
fi[:30].plot.barh(figsize=(12, 7))

png

fi.loc['YearRemodAdd']
importance    0.00591
Name: YearRemodAdd, dtype: float64

These importances tell you where to focus your attention on your dataset. Your data may have thousands of features, so having a way to narrow your investigation scope is very helpful.

Here are a few things to think about:

  • Which features are the most important? This is a good opportunity to do some feature engineering. For example, if a date turned out to be an important feature, you may want to split this up into more granular features, such as splitting up the day/month/year, day of week, adding season, etc.
  • Which features are less important? Can we make them more useful through feature engineering?
  • Do the important features make sense? For example, suppose the data had an ID number that was assigned randomly, but turned out to be important. This is suspicious and you should look into the data and see why this is the case.
  • Are there are any features you expected to be important but aren’t? This could indicate some data cleaning work you missed. If not, this is useful to build intuition about your dat.
  • If there are highly correlated features, which of the correlated features are important? How does removing the less important feature affect the model performance?
  • And many more…

Let’s try keeping only the important features and seeing how the model performs:

X_train_new = X_train[fi[fi['importance'] > 0.005].index]
X_valid_new = X_valid[fi[fi['importance'] > 0.005].index]
X_train.shape  # see how many features are left
(1168, 82)
model_new = RandomForestRegressor(n_estimators=30,
                                  n_jobs=-1,
                                  oob_score=True,
                                  min_samples_leaf=3,
                                  max_features=0.5)
model_new.fit(X_train_new, y_train)
print_score(model_new, X_t=X_train_new, X_v=X_valid_new)
Train RMSE: 17820.096007344346
Valid RMSE: 29815.94532060853
Train R^2: 0.9467594702883222
Valid R^2: 0.8841000276456914

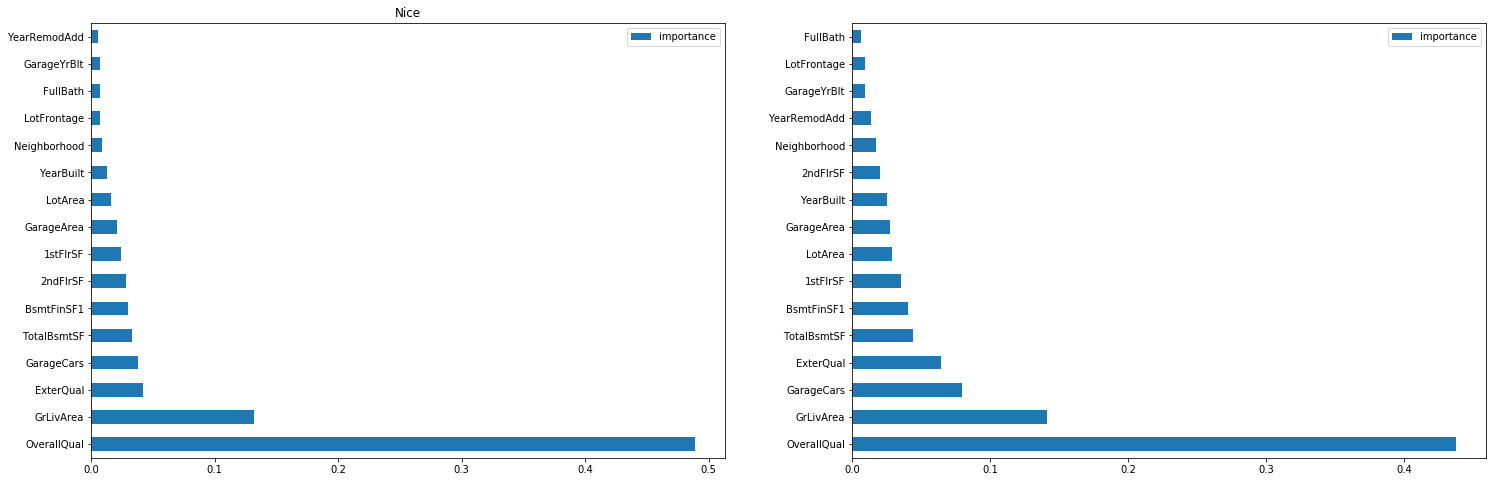

We can compare the feature importances from the model trained with all the features vs the model with just some of the features.

fi2 = pd.DataFrame(model_new.feature_importances_,
                   index = X_train_new.columns,
                   columns=['importance']).sort_values('importance', ascending=False)

fig, ax = plt.subplots(1,2, figsize=(25,8))
fi[:16].plot.barh(ax=ax[0], title='Nice')
fi2.plot.barh(ax=ax[1])

png

Identifying Correlated Features

Identifying and resolving correlated features can sometimes improve your model in a few ways:

  • Decreases the dimensionality of your data
  • Can reduce overfitting
  • Prevents the model from learning unintended biases
  • Makes the model more interpretable (treeinterpeter/partial depencence plots will be more accurate)
  • And more.

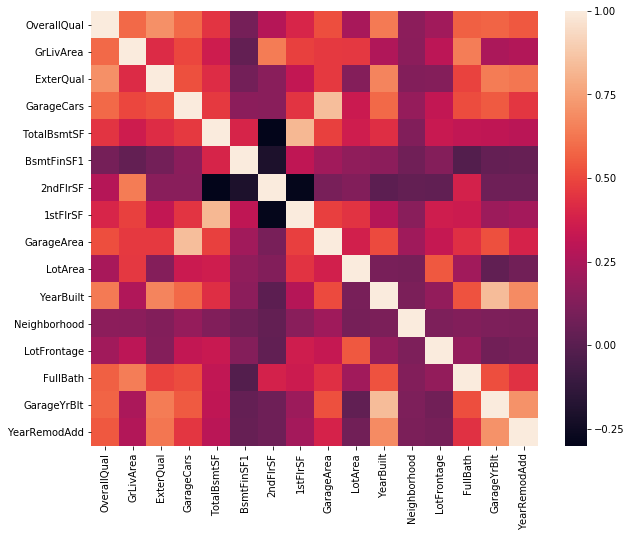

For many model types, you would look at normal (linear) correlation, but a random forest is not affected by just linear correlation. Since the trees simply split the data at some point, just the rank of the feature matters.

Consider you sort the data by a feature. The rank is the position of the example in the sorted dataset. Below, we identify rank correlations.

from scipy.cluster import hierarchy as hc
from scipy import stats
df2 = X_train_new[
  X_train_new.columns[X_train_new.dtypes != 'category']
]
corr = np.round(stats.spearmanr(df2).correlation, 4)
fig, ax = plt.subplots(figsize=(10,8))
g = sns.heatmap(corr, ax=ax)
g.set_yticklabels(df2.columns, rotation=0)
g.set_xticklabels(df2.columns, rotation=90)
None

png

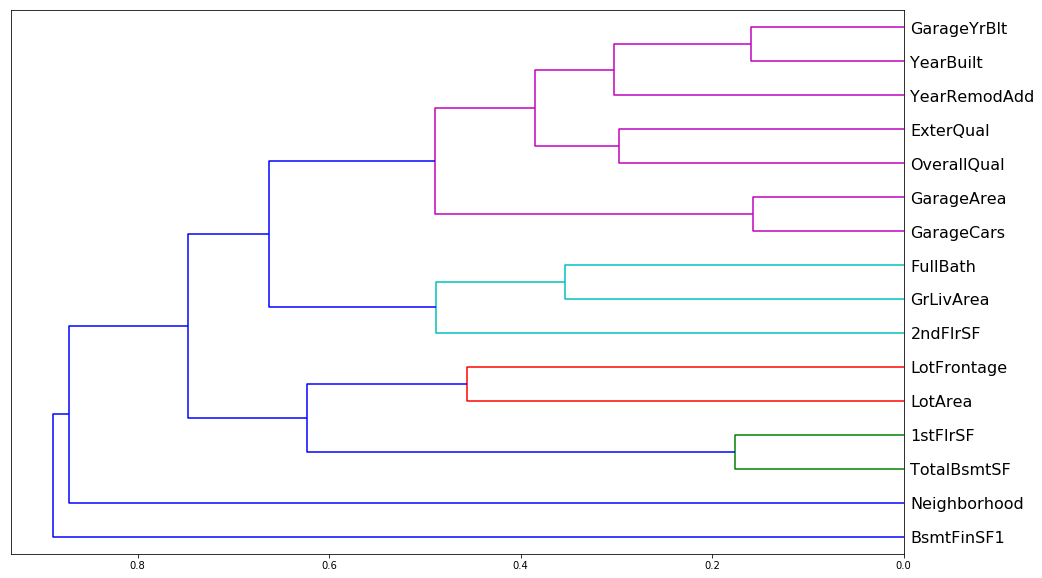

corr_condensed = hc.distance.squareform(1-corr)
z = hc.linkage(corr_condensed, method='average')
fig = plt.figure(figsize=(16,10))
dendrogram = hc.dendrogram(z, labels=df2.columns, orientation='left',
                           leaf_font_size=16)
plt.show()

png

Tree Interpreter

Tree interpreter is a great way to understand the individual predictions. Recall for a Decision Tree, at each node, the model makes a “decision” based on a condition on a feature to follow the left child or the right child. Each node contains the average target value for the subset of data that satisfies the condition. The tree interpreter measures how much the average changes for each of these decisions for each feature (averaged across all trees). We call this average change the contribution of the feature.

from treeinterpreter import treeinterpreter as ti

r = X_valid.values[None,0]
_, _, contributions = ti.predict(model, r)

ti_df = pd.DataFrame({
    'feature': X_valid.columns,
    'value': X_valid.iloc[0],
    'contributions': contributions[0],
})
show_all(ti_df.sort_values('contributions'))
feature value contributions
OverallQual OverallQual 6.0 -23204.618284
GrLivArea GrLivArea 1068.0 -18869.146520
GarageArea GarageArea 264.0 -6130.961614
GarageCars GarageCars 1.0 -4230.235767
ExterQual ExterQual 2.0 -3690.661634
YearBuilt YearBuilt 1963.0 -1606.690435
FullBath FullBath 1.0 -1549.810925
MoSold MoSold 2.0 -1044.108978
GarageYrBlt GarageYrBlt 1963.0 -839.353054
1stFlrSF 1stFlrSF 1068.0 -761.773371
FireplaceQu FireplaceQu -1.0 -435.448301
2ndFlrSF 2ndFlrSF 0.0 -353.114027
KitchenQual KitchenQual 3.0 -274.866357
YrSold YrSold 2006.0 -260.455148
HouseStyle HouseStyle 2.0 -241.007907
HeatingQC HeatingQC 4.0 -224.041546
MasVnrArea MasVnrArea 0.0 -184.002489
Id Id 893.0 -171.481627
Fireplaces Fireplaces 0.0 -142.288747
BsmtFullBath BsmtFullBath 0.0 -139.435641
BsmtFinSF2 BsmtFinSF2 0.0 -132.122053
BsmtExposure BsmtExposure 3.0 -116.156015
BsmtQual BsmtQual 3.0 -111.225296
Neighborhood Neighborhood 19.0 -76.460459
ExterCond ExterCond 2.0 -58.762708
HalfBath HalfBath 0.0 -38.991079
SaleType SaleType 8.0 -27.675000
LotFrontage_null LotFrontage_null 0.0 -21.285714
ScreenPorch ScreenPorch 0.0 -17.295352
MiscFeature MiscFeature -1.0 -17.083333
GarageFinish GarageFinish 1.0 -0.033333
KitchenAbvGr KitchenAbvGr 1.0 0.000000
Electrical Electrical 4.0 0.000000
LowQualFinSF LowQualFinSF 0.0 0.000000
Utilities Utilities 0.0 0.000000
LotShape LotShape 3.0 0.000000
LandSlope LandSlope 0.0 0.000000
Heating Heating 1.0 0.000000
GarageYrBlt_null GarageYrBlt_null 0.0 0.000000
Functional Functional 6.0 0.000000
BldgType BldgType 0.0 0.000000
Street Street 1.0 0.000000
3SsnPorch 3SsnPorch 0.0 0.000000
PoolArea PoolArea 0.0 0.000000
PoolQC PoolQC 0.0 0.000000
RoofMatl RoofMatl 1.0 0.000000
MiscVal MiscVal 0.0 0.000000
Condition2 Condition2 2.0 0.000000
TotRmsAbvGrd TotRmsAbvGrd 6.0 0.000000
Alley Alley -1.0 0.000000
BsmtHalfBath BsmtHalfBath 1.0 4.666667
LandContour LandContour 3.0 19.390152
MasVnrType MasVnrType 2.0 20.747510
Condition1 Condition1 2.0 27.096890
Foundation Foundation 1.0 27.947817
EnclosedPorch EnclosedPorch 0.0 28.570496
PavedDrive PavedDrive 2.0 40.605275
Exterior1st Exterior1st 6.0 50.324136
LotConfig LotConfig 4.0 56.750000
BsmtFinType2 BsmtFinType2 5.0 73.333333
MSSubClass MSSubClass 20.0 80.537781
OpenPorchSF OpenPorchSF 0.0 98.498287
Exterior2nd Exterior2nd 6.0 99.801761
BsmtFinType1 BsmtFinType1 2.0 151.642921
RoofStyle RoofStyle 3.0 153.249065
BedroomAbvGr BedroomAbvGr 3.0 161.383636
BsmtCond BsmtCond 3.0 255.793641
GarageCond GarageCond 4.0 264.679058
Fence Fence 2.0 321.183333
MSZoning MSZoning 3.0 396.914474
BsmtFinSF1 BsmtFinSF1 663.0 449.878523
GarageQual GarageQual 4.0 462.399980
WoodDeckSF WoodDeckSF 192.0 487.761372
SaleCondition SaleCondition 4.0 490.223394
CentralAir CentralAir 1.0 533.540801
GarageType GarageType 1.0 569.096237
BsmtUnfSF BsmtUnfSF 396.0 601.818903
LotArea LotArea 8414.0 982.527398
LotFrontage LotFrontage 70.0 1255.136900
OverallCond OverallCond 8.0 2634.189802
YearRemodAdd YearRemodAdd 2003.0 2661.275923
TotalBsmtSF TotalBsmtSF 1059.0 11313.187661

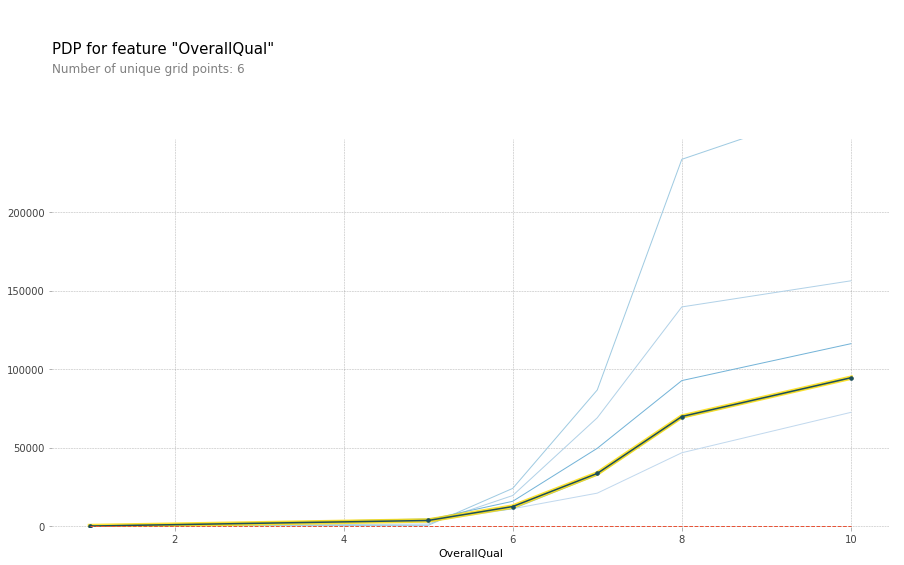

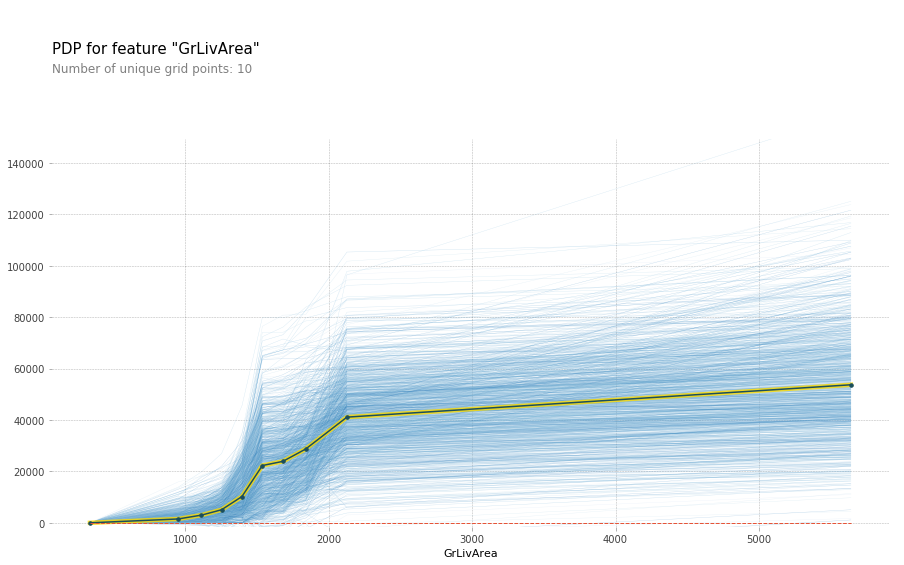

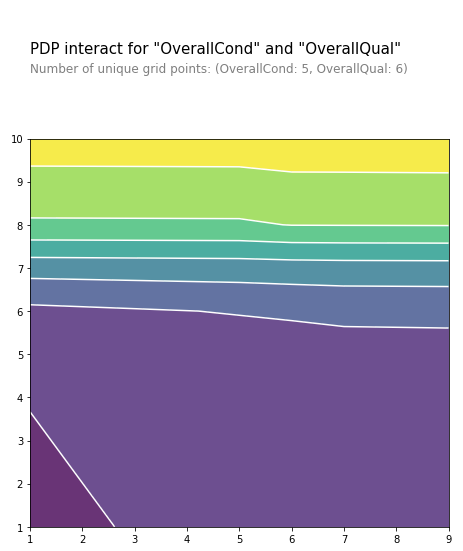

Partial Dependence Plots

We will not cover Partial Dependence Plots in this workshop, but here is some code demonstrating how you can use them.

Partial dependence use the model and dataset as follows. It varies the value of the feature of interest while keeping the rest of the features the same. Then, it uses the model to make a prediction on this augmented data. This way, we can see the effect of that feature alone. This library finds clusters in the dataset predictions for you.

from pdpbox import pdp

def plot_pdp(feat, clusters=None, feat_name=None):
    feat_name = feat_name or feat
    p = pdp.pdp_isolate(model, X_train, X_train.columns, feat)
    return pdp.pdp_plot(p, feat_name,
                        plot_lines=True,
                        cluster=clusters is not None,
                        n_cluster_centers=clusters)

plot_pdp('GrLivArea')

png

plot_pdp('OverallQual', clusters=5)
plt.figure()

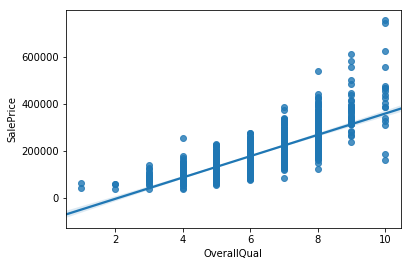

sns.regplot(data=df, x='OverallQual', y='SalePrice')

png

png

There seems to be an issue in the library related to plotting (or perhaps my code is wrong somehow), which is why I use a try-except block. Due to this issue, the axis are not shown.

feats = ['OverallQual', 'GrLivArea']
p = pdp.pdp_interact(model, X_train, X_train.columns, feats)

try:
  pdp.pdp_interact_plot(p, feats)
except TypeError:
  pass

png

feats = ['OverallCond', 'OverallQual']
p = pdp.pdp_interact(model, X_train, X_train.columns, feats)

try:
  pdp.pdp_interact_plot(p, feats)
except TypeError:
  pass

png

Standard Process for Quick RF Development:

  1. Using scoring metric (provided or decided), create a scoring function (training + validation).
  2. Create a validation set with same properties as test set.
  3. Run a quick random forest on the data with minimal alterations.
  4. Plot feature importance, plot the features, and learn about those features (domain knowledge).
  5. Use a natural breakpoint to remove unimportant features then plot again.
  6. Look at data carefully and encode important features better.
  7. Using heirachical clustering to remove redundant features (scipy)
  8. For interpretation, use partial dependence plots from PDP.
  9. Use Tree Interpreter to explain individual predictions.

Related posts
